Transforming Outdoor Leisure: A Bespoke Spa, Pool & Entertaining Space:

Luxury Oak-Framed Pool & Spa Retreat with Outdoor Entertaining Space!

The proposed project involves replacing an existing outbuilding with a high-quality oak-framed structure that includes a detached swimming pool, spa area, and BBQ space. The design features bi-fold doors, rooflights, and oak-framed windows to maximise natural light and ventilation throughout. Finishes such as reclaimed bricks and timber detailing will complement the main house, creating a functional and visually striking leisure space.

Project type:

Replacing out-building

Location:

Services requested:

Walton on the Hill, Tadworth

Permitted by:

Reigate and Banstead Borough Council

Planning Permission
Structural Drawings and Calculations
Building Regulation Drawings

Existing Area

Total Area after proposal

151.6 Square metre.

162.7 Square metre.

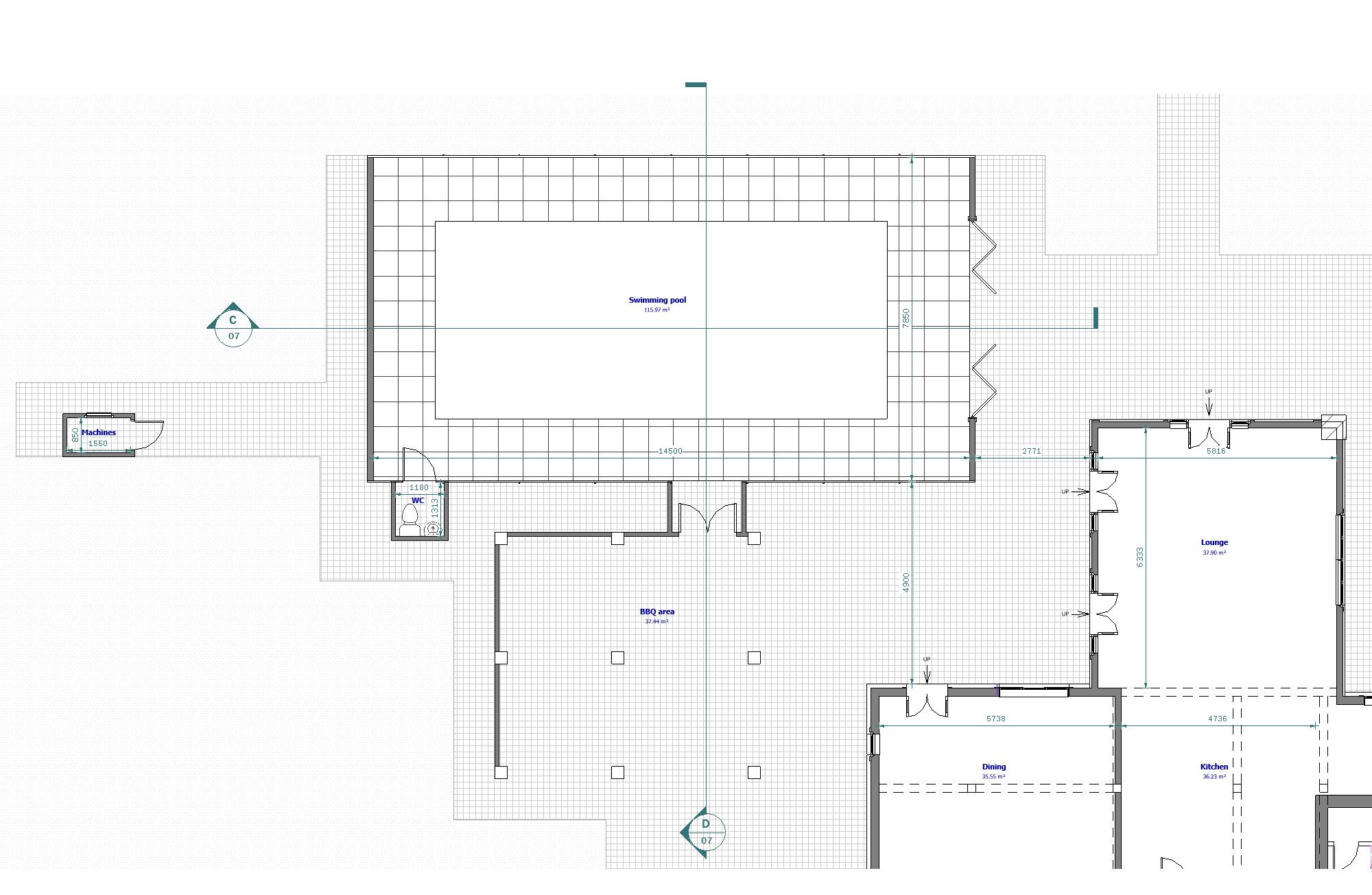

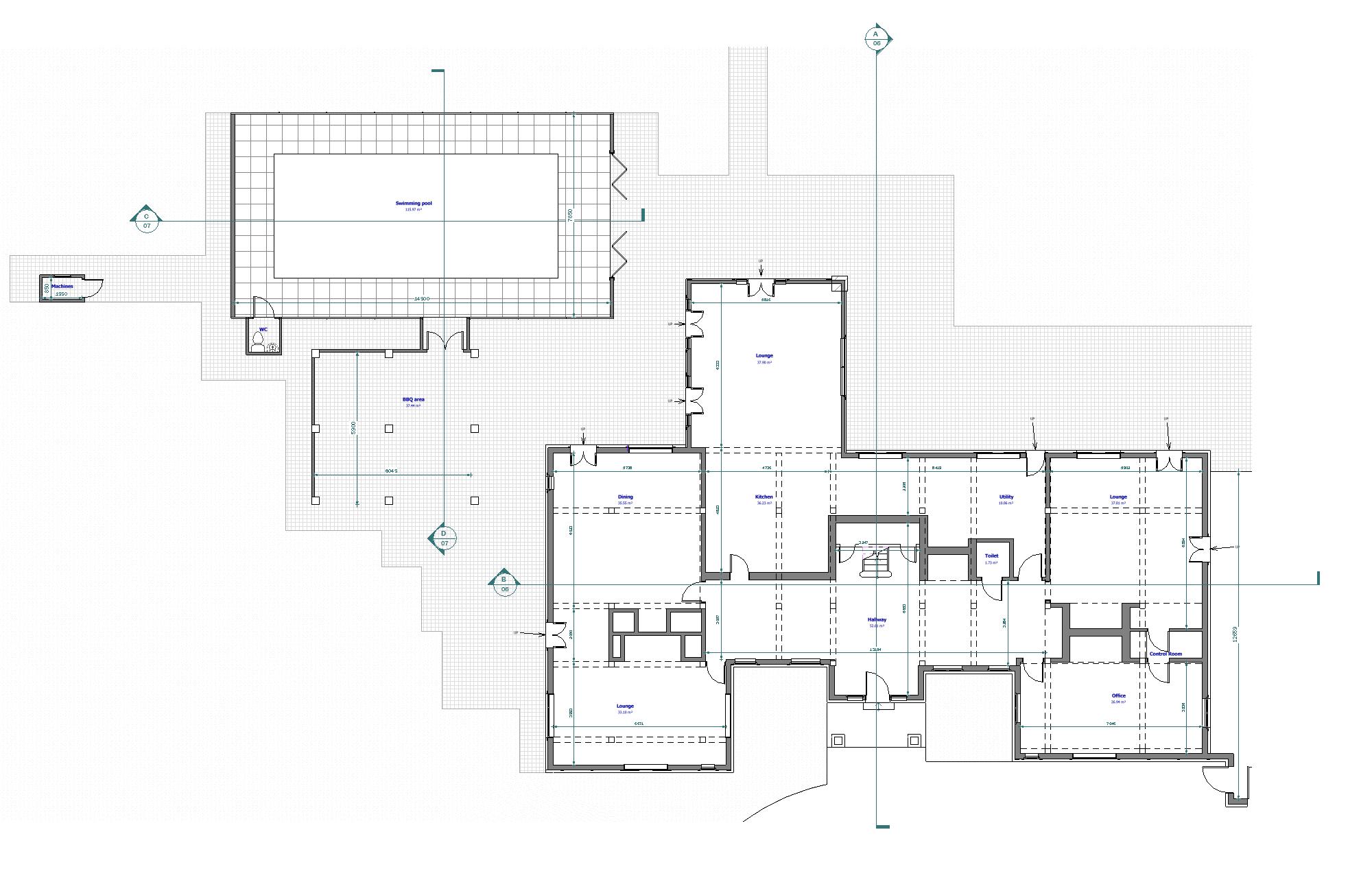

Existing Ground Floor Plan

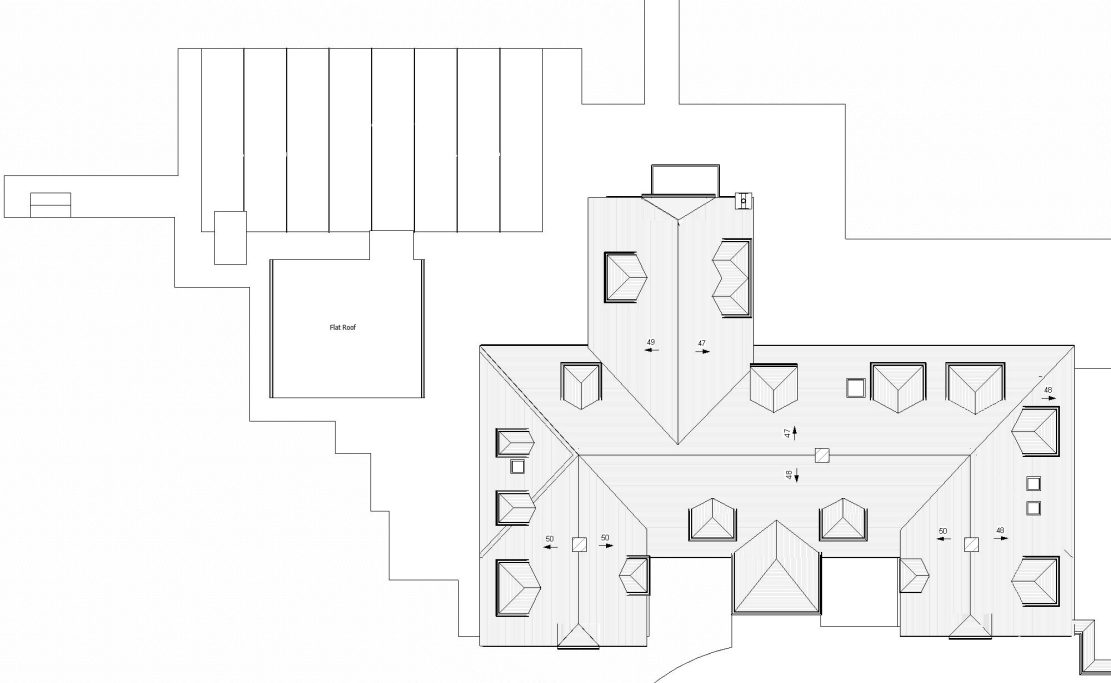

Existing Roof Plan

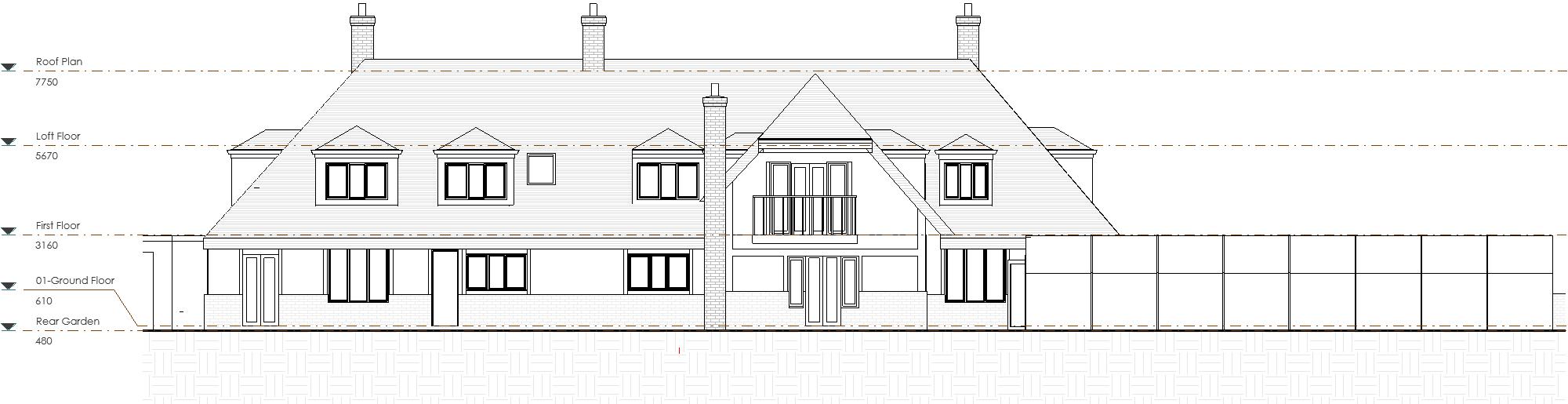

Existing Front Elevation

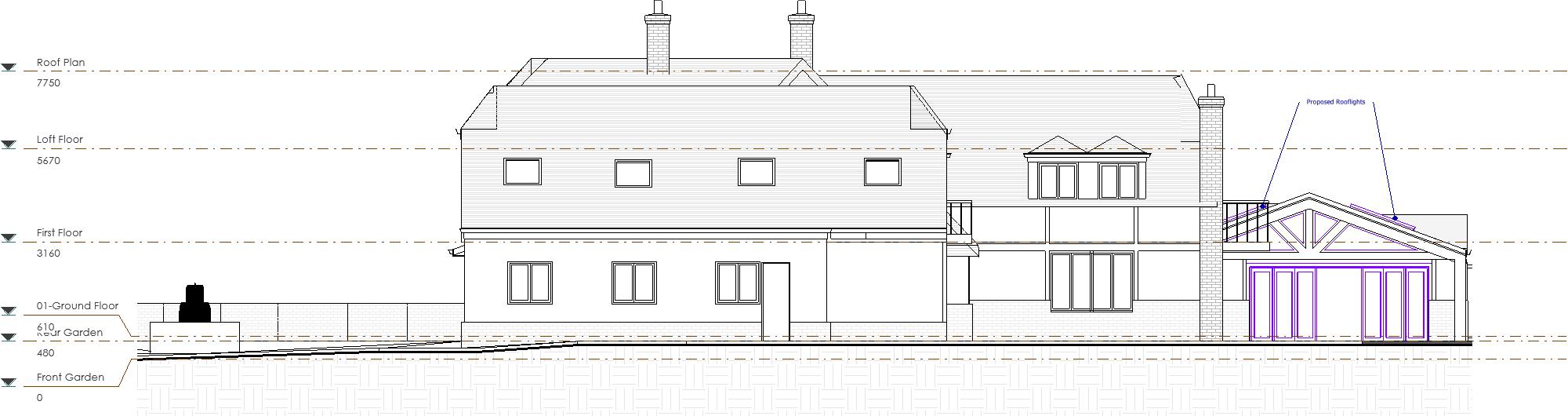

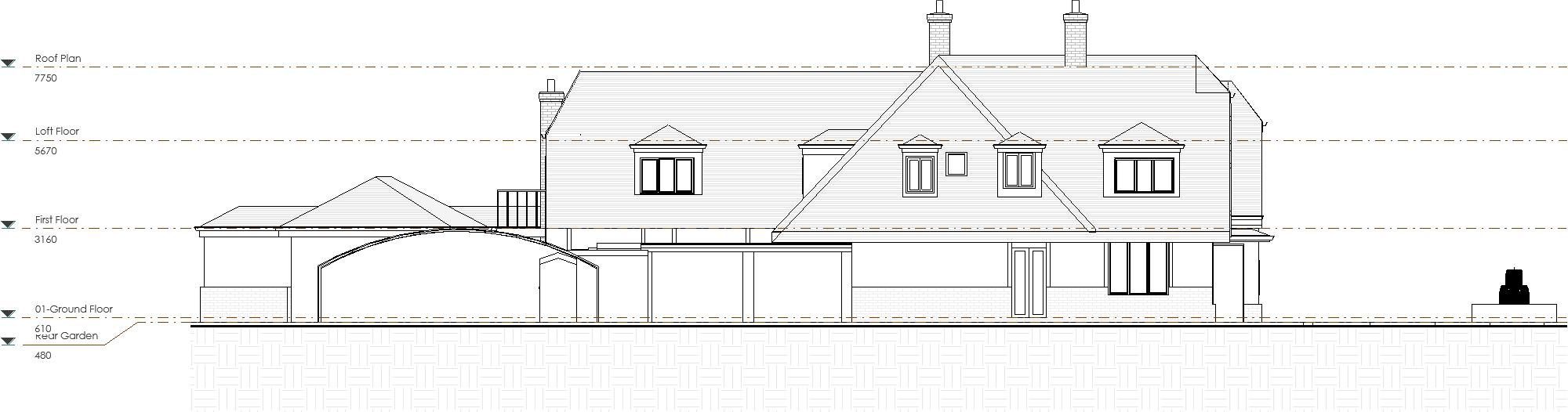

Existing Rear Elevation

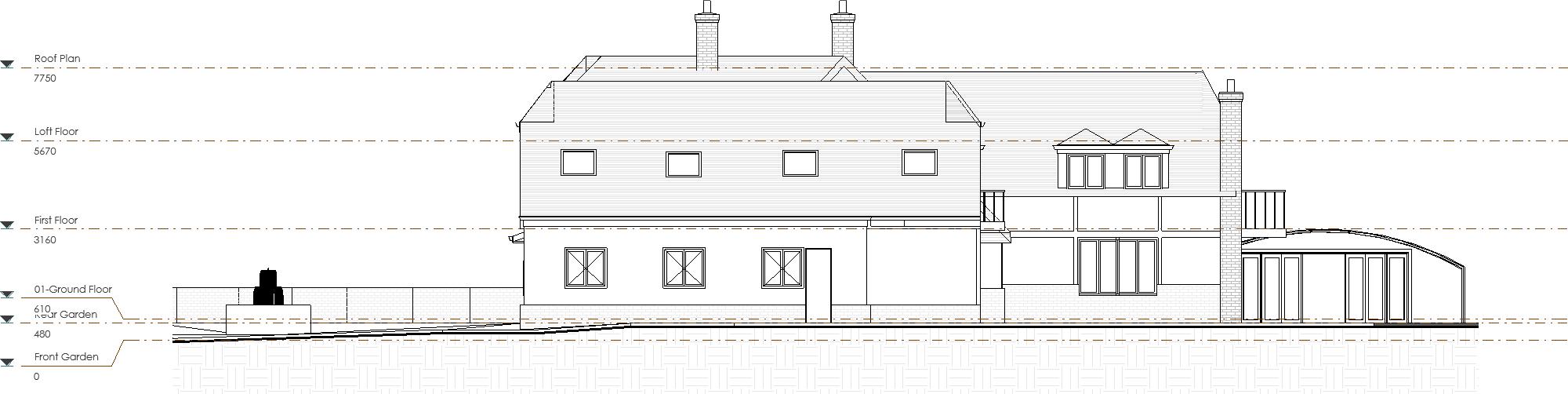

Existing Side Elevation

Existing out-building

Existing horizontal section

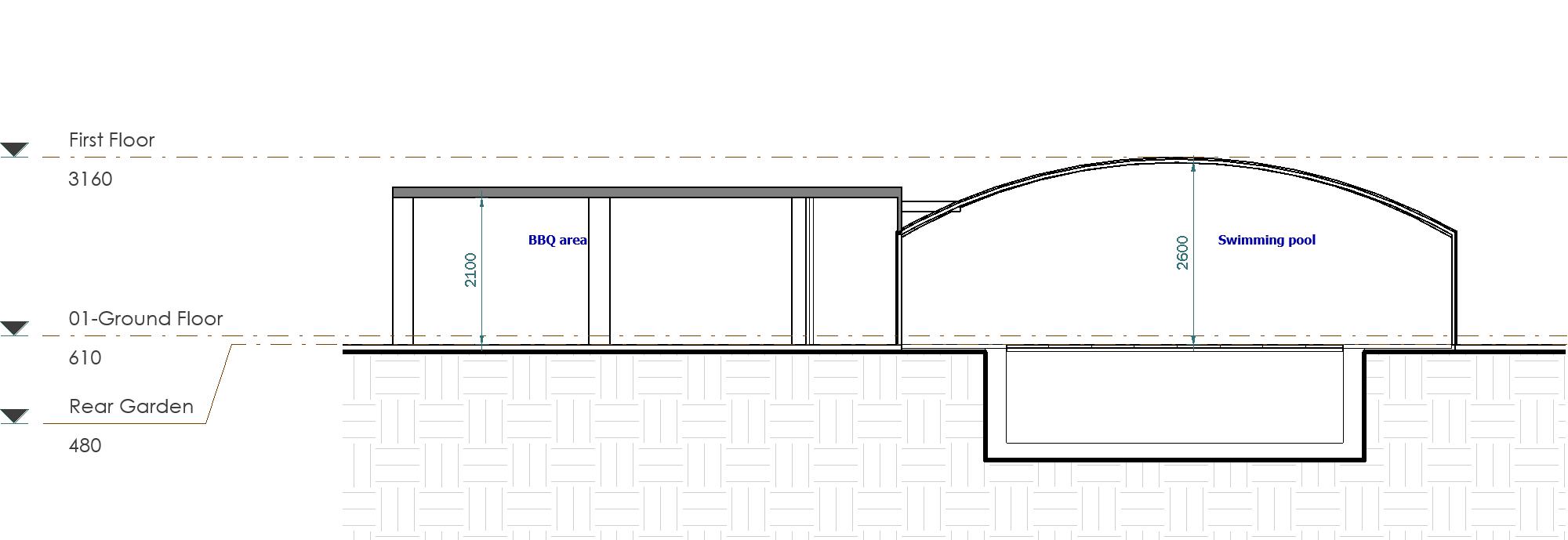

Existing Vertical section

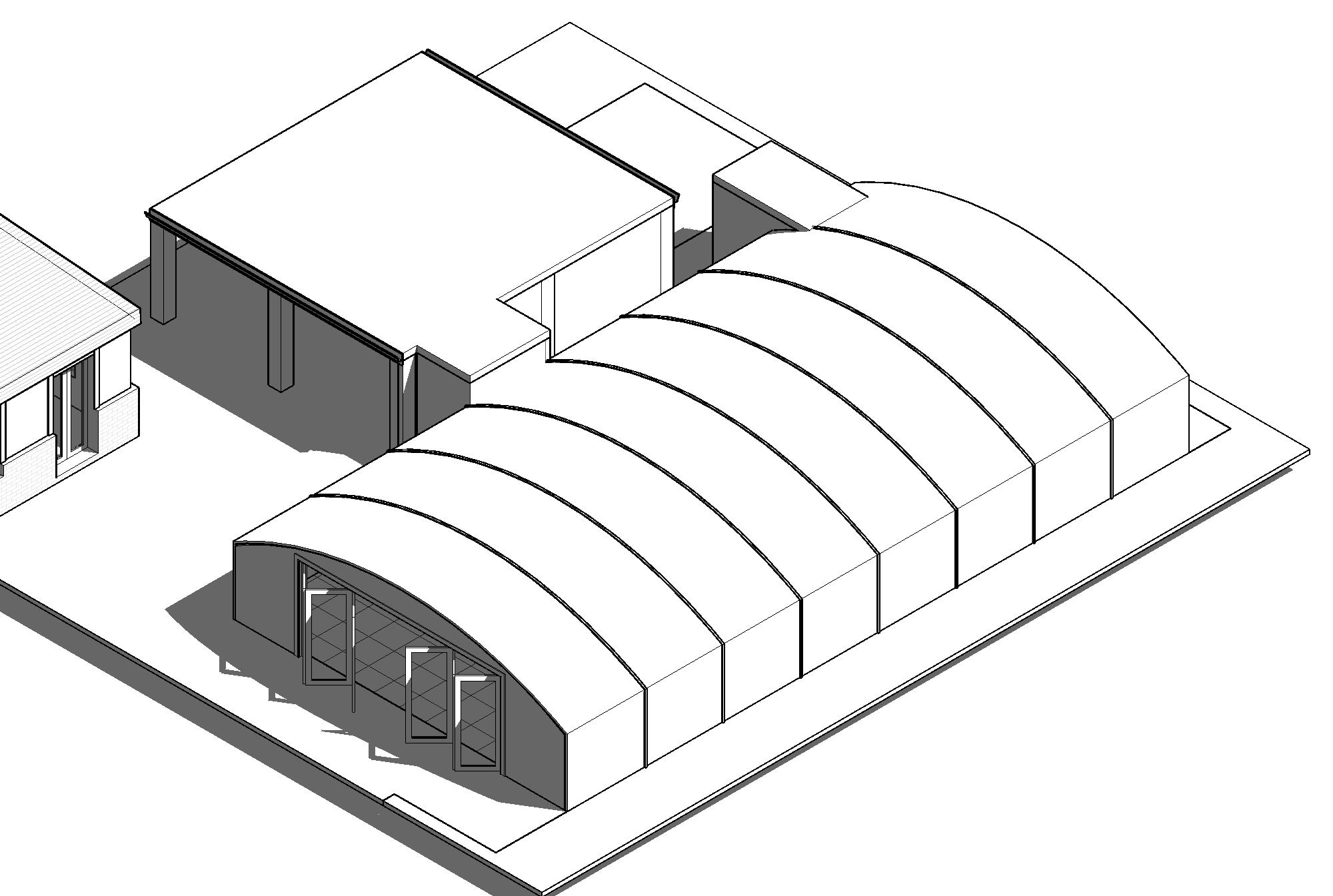

Existing 3D view

The proposed project seeks to replace the existing outbuilding, which currently consists of a basic BBQ area with a timber canopy and a polytunnel structure housing a swimming pool with an adjoining toilet.
While functional, the existing setup is limited in both durability and aesthetic value, and no longer meets the client’s needs for year-round use or modern leisure standards.

The new design presents a significant improvement in both functionality and aesthetic appeal. It features a detached swimming pool area enhanced by large bi-fold doors and rooflights, allowing for ample natural light and effective ventilation. This pool area is seamlessly connected to a bespoke spa zone, which includes a Jacuzzi/hot tub, sauna, toilet, and shower facilities—creating a well-integrated wellness experience.
Adjacent to the spa, the new BBQ area continues the emphasis on indoor-outdoor flow, with bi-fold doors, windows, and rooflights designed to maximise daylight and ventilation.
The proposed building is a standout architectural feature in its own right. It will be constructed using a traditional oak frame, with roof tiles carefully selected to match those of the existing house. High-quality oak-framed doors and windows will be installed, complemented by reclaimed bricks and timber cladding details to blend harmoniously with the surrounding environment.

Get a Quote

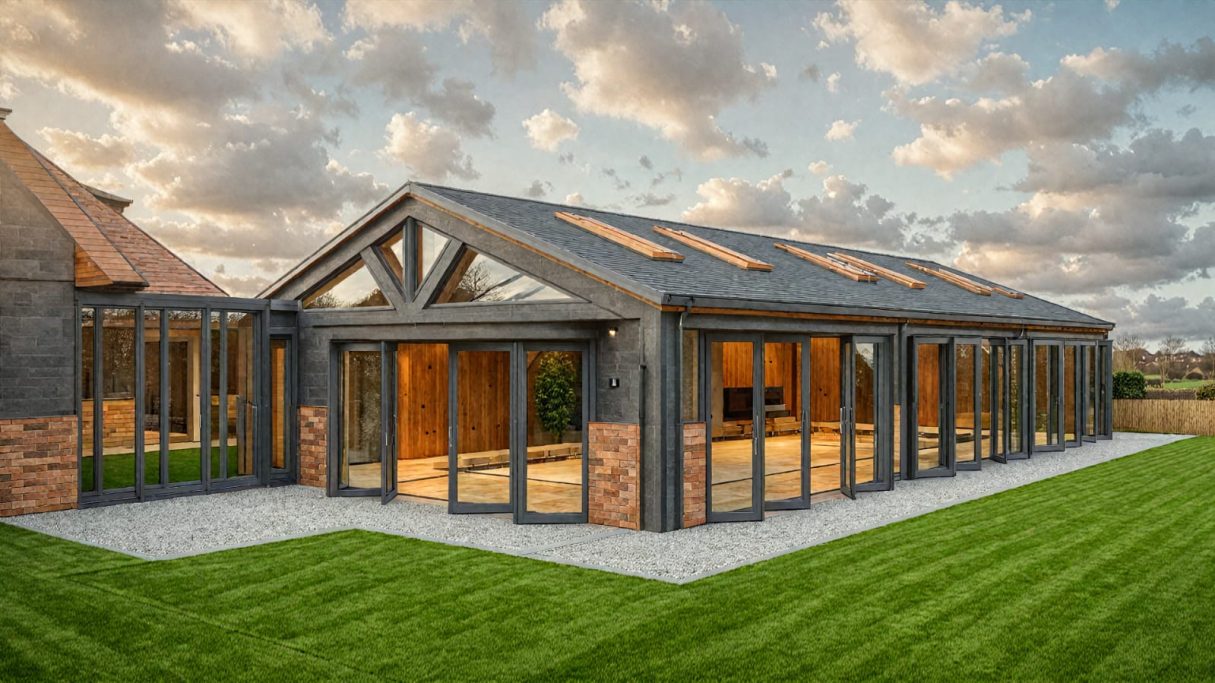

Modern glass extension with a wooden frame, set on a green lawn.

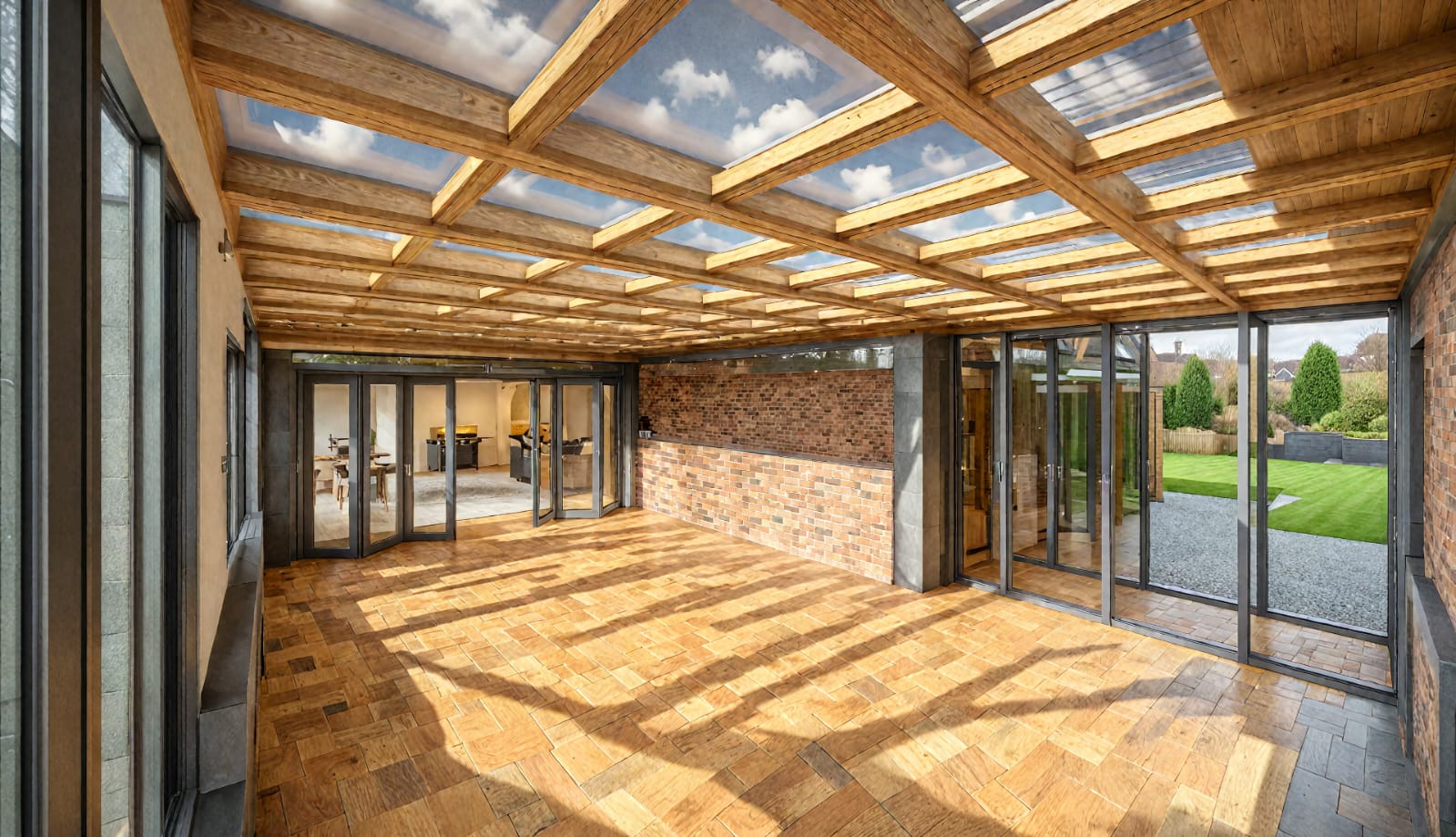

Indoor swimming pool with wooden beams and natural light, surrounded by wooden flooring.

Book a free consultation

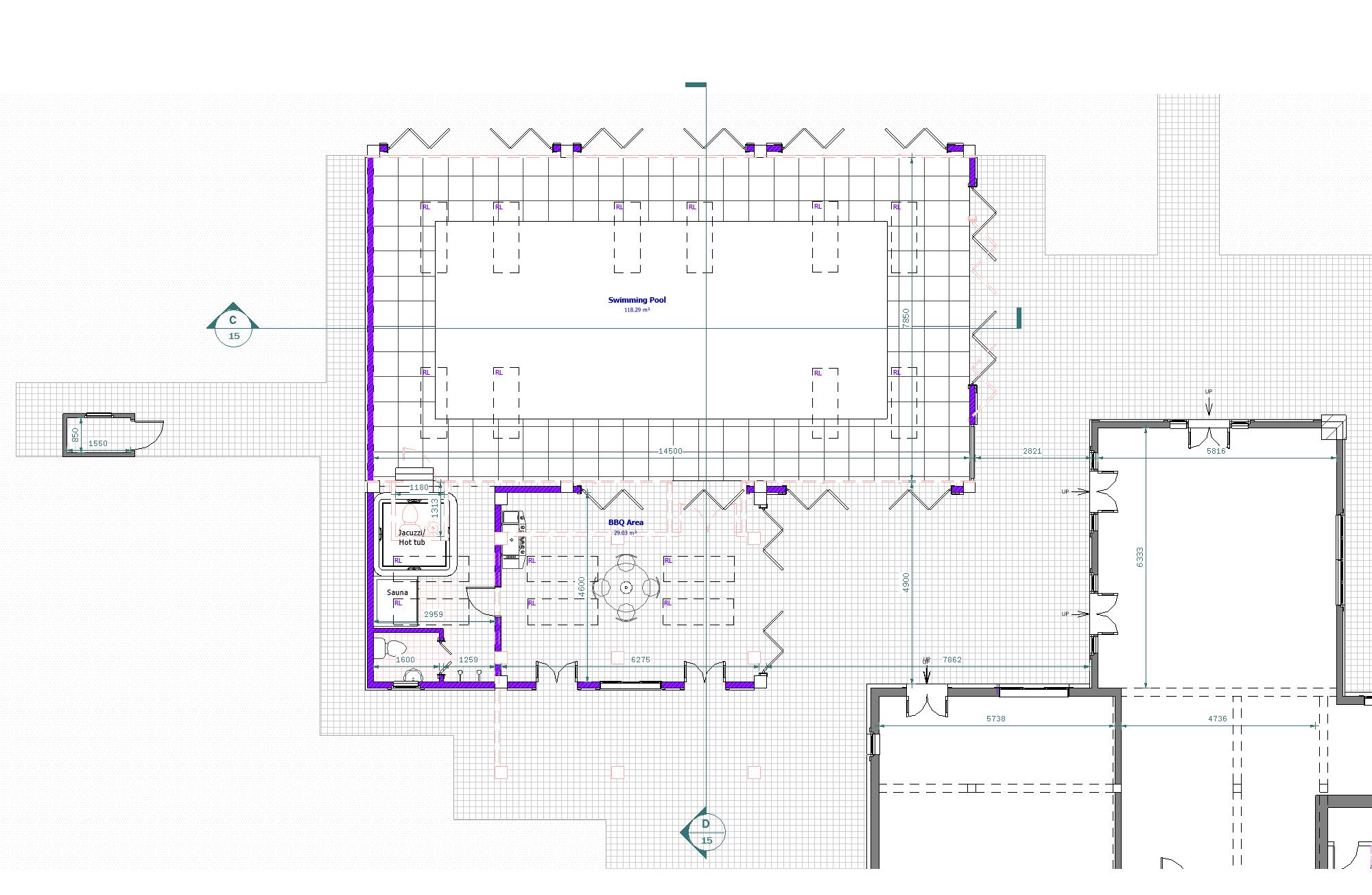

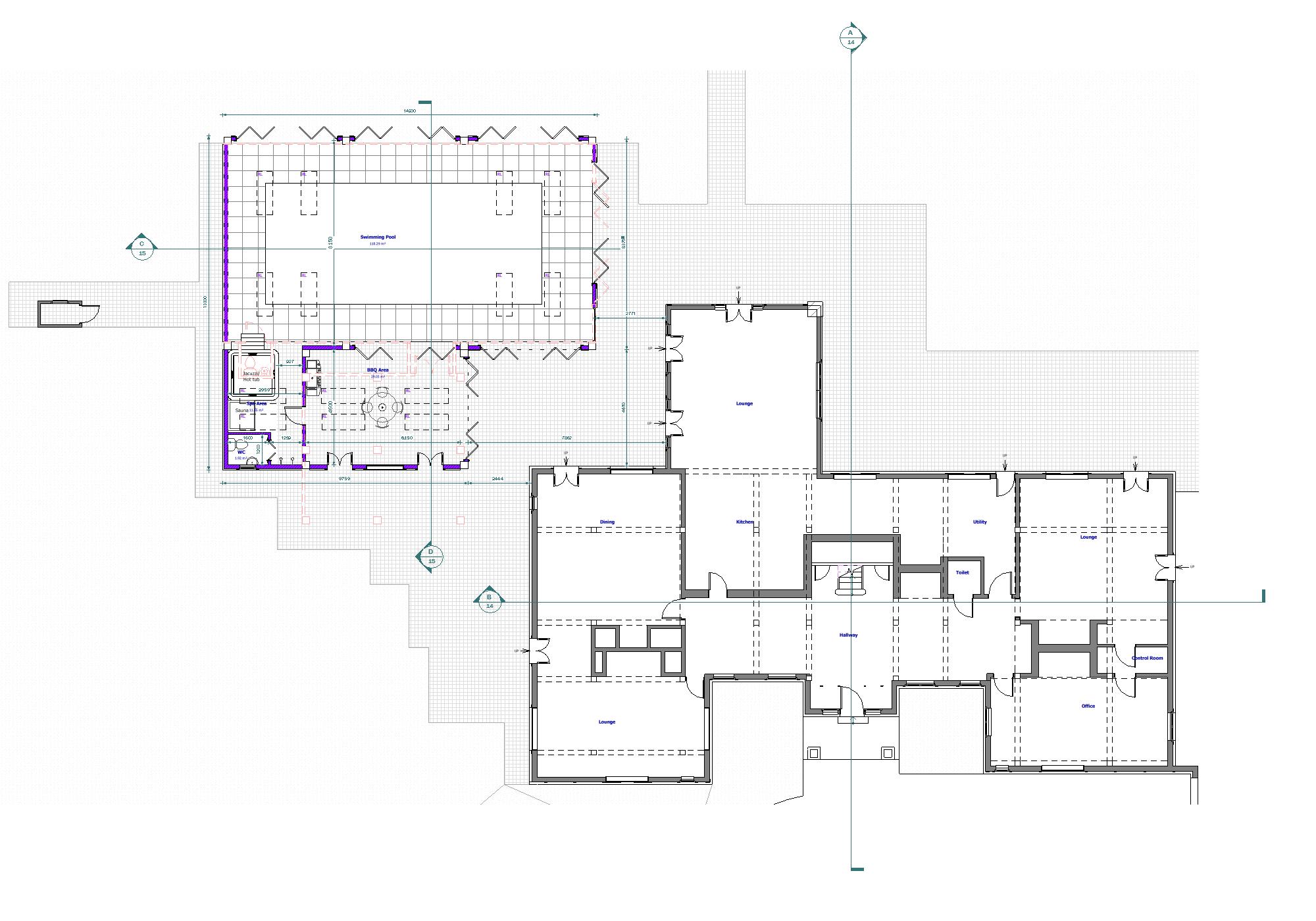

Proposed Ground Floor

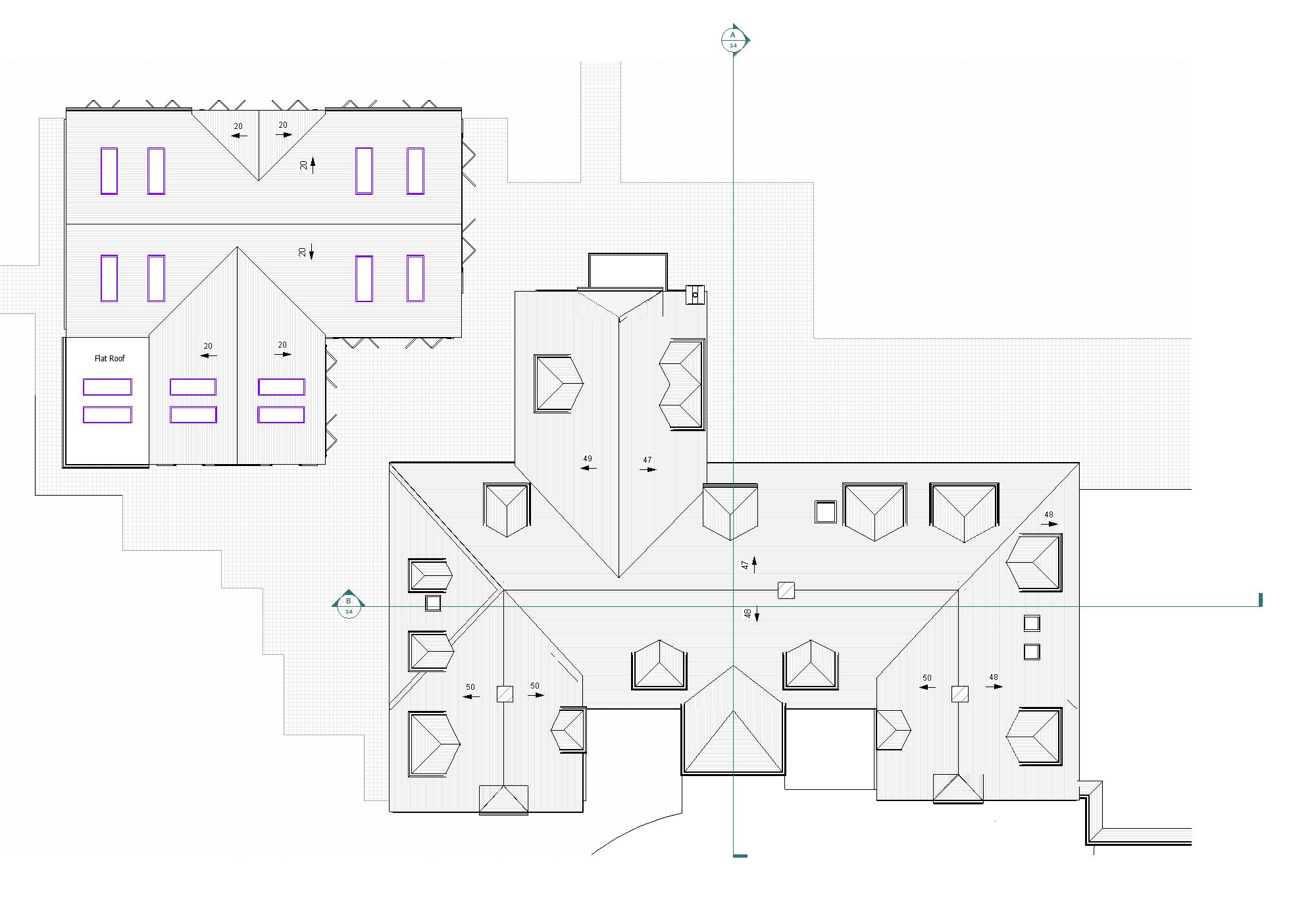

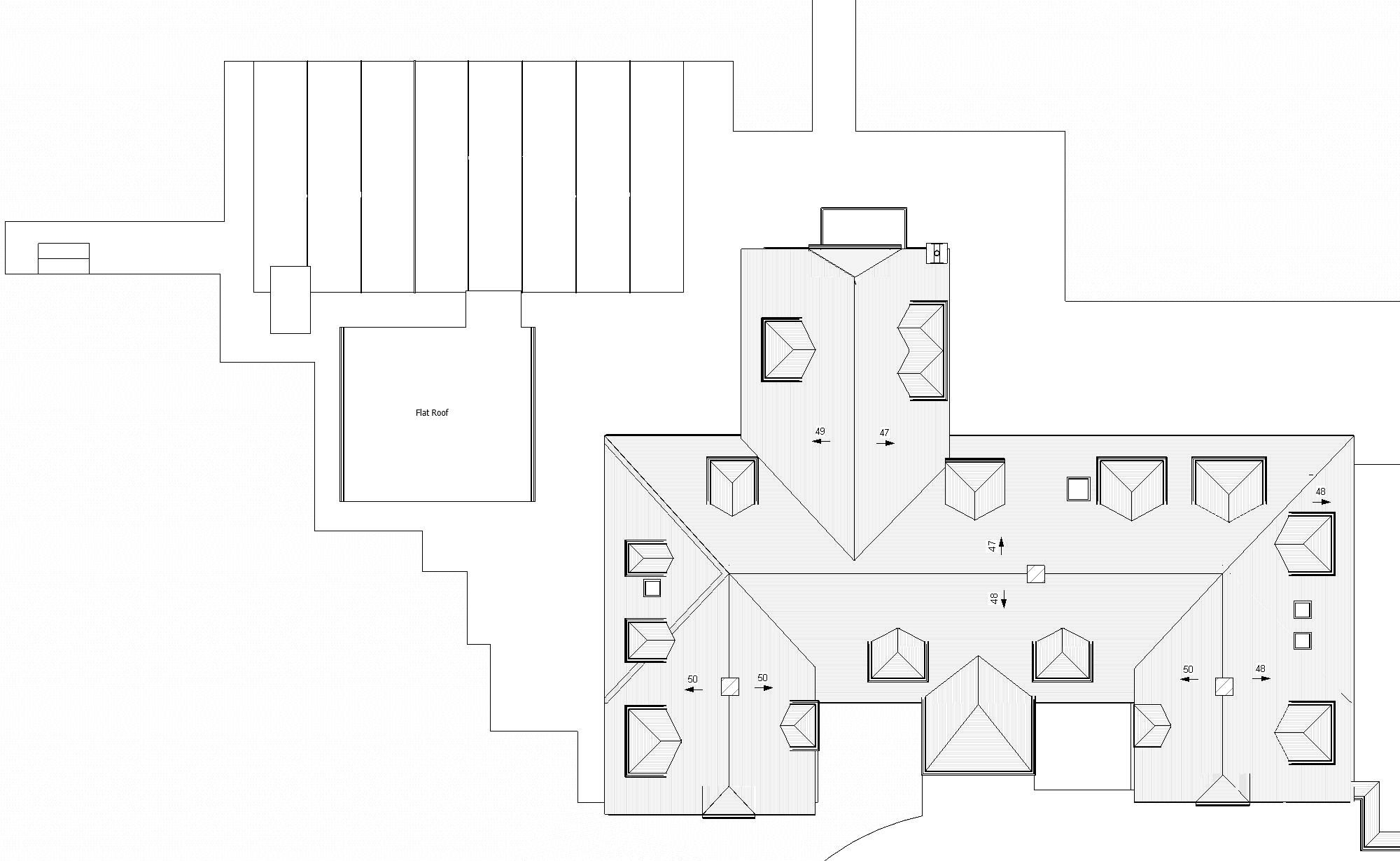

Proposed Roof Plan

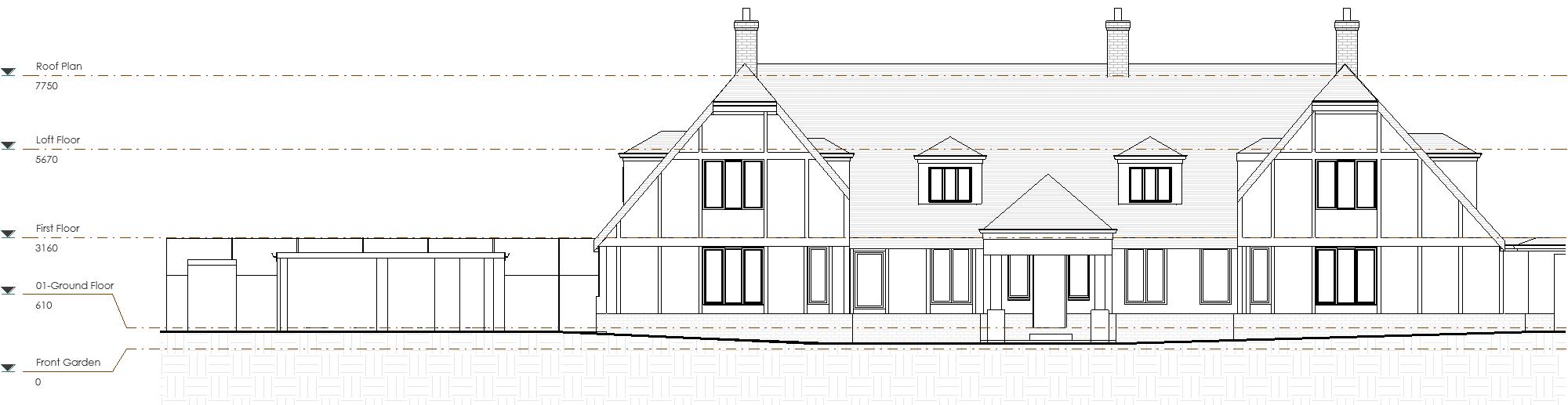

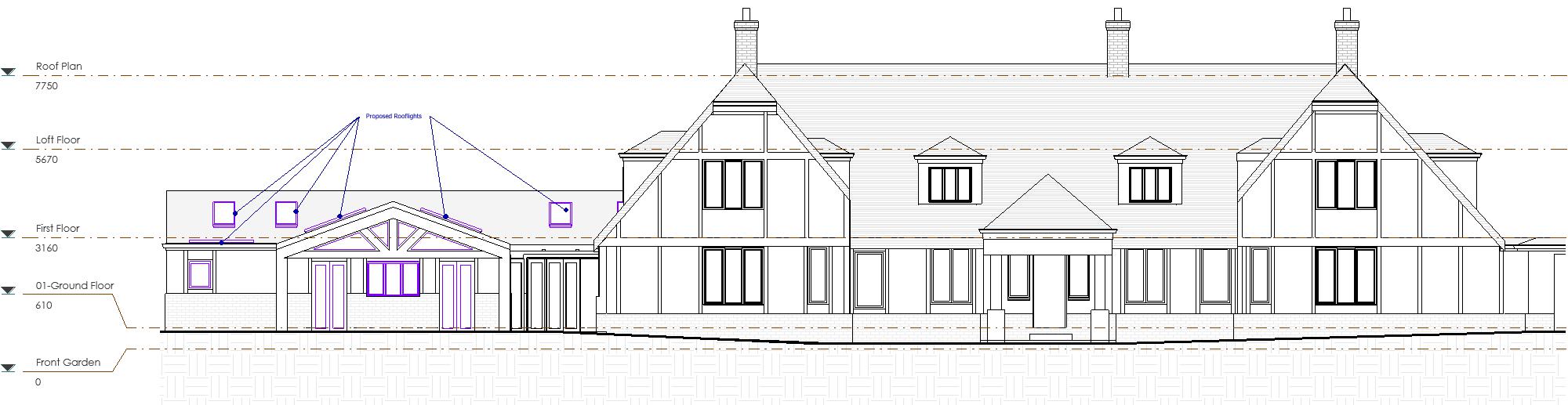

Proposed Front Elevation

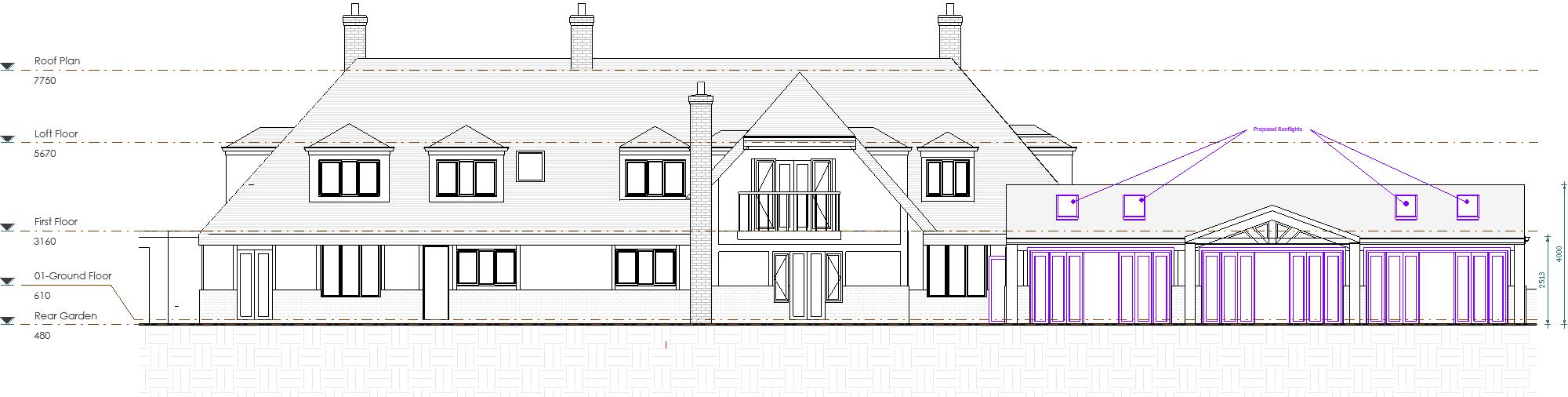

Proposed Rear Elevation

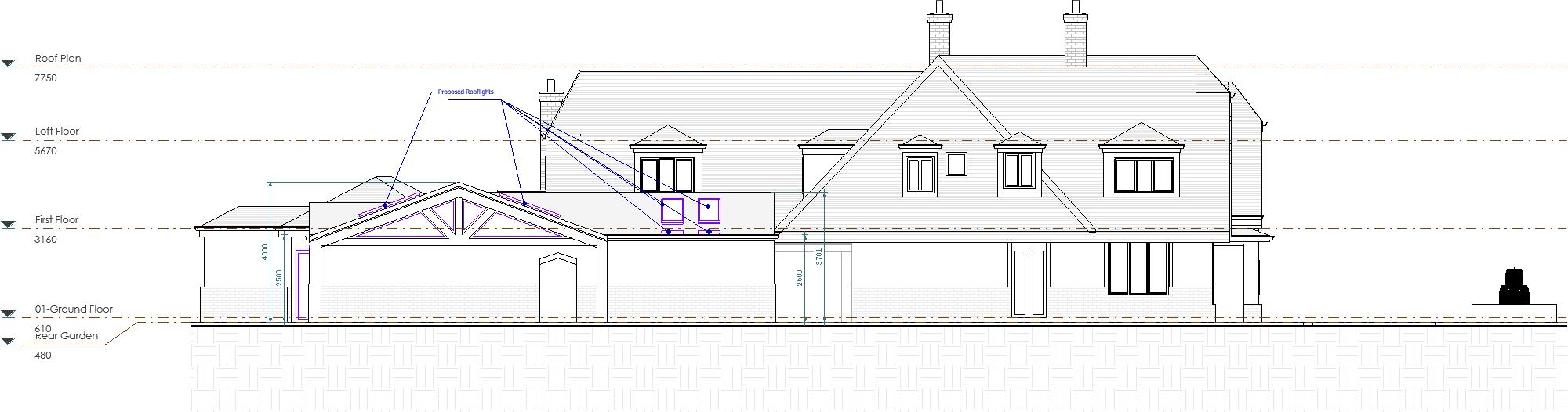

Proposed Side Elevation

Proposed Out-building

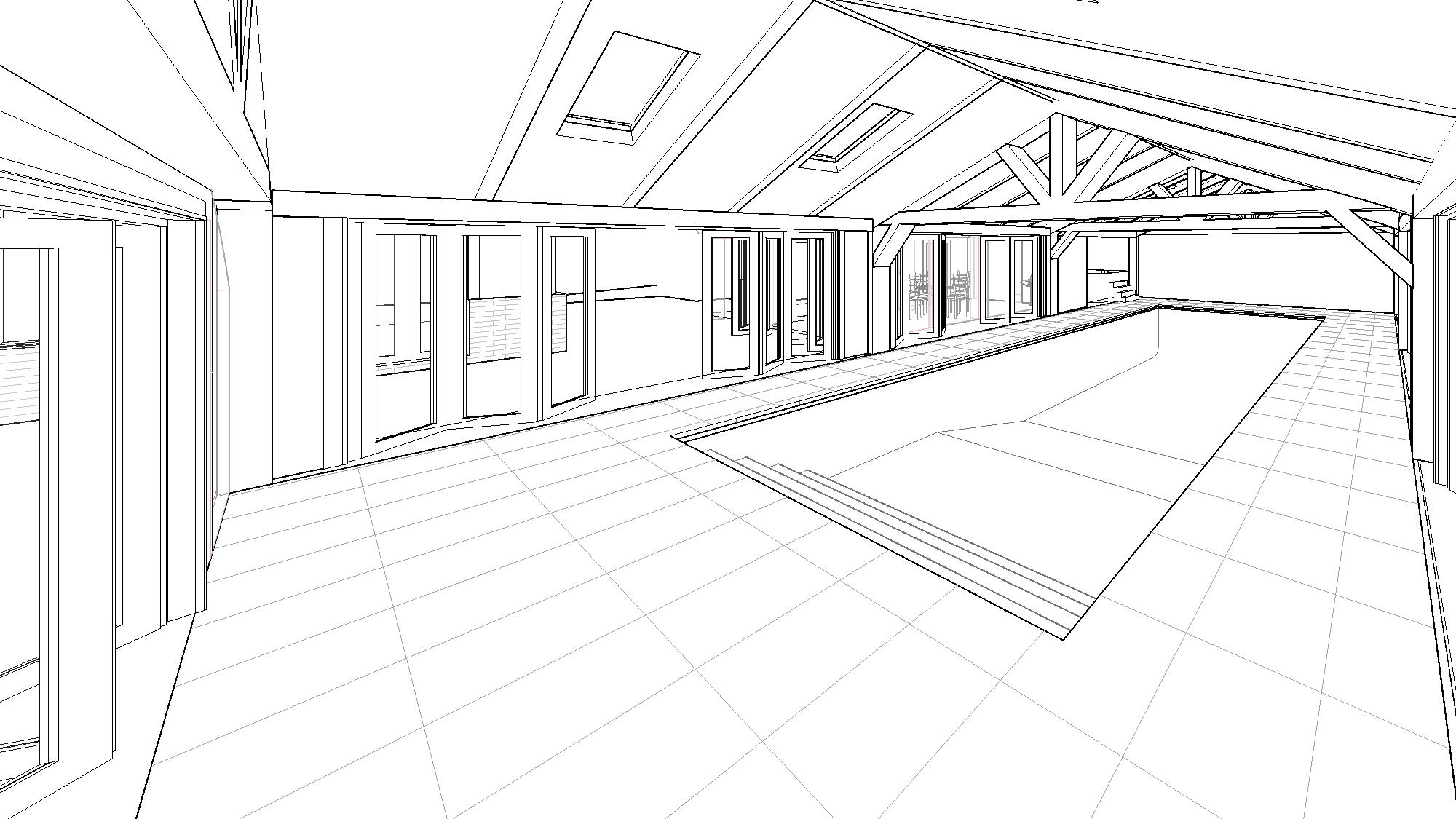

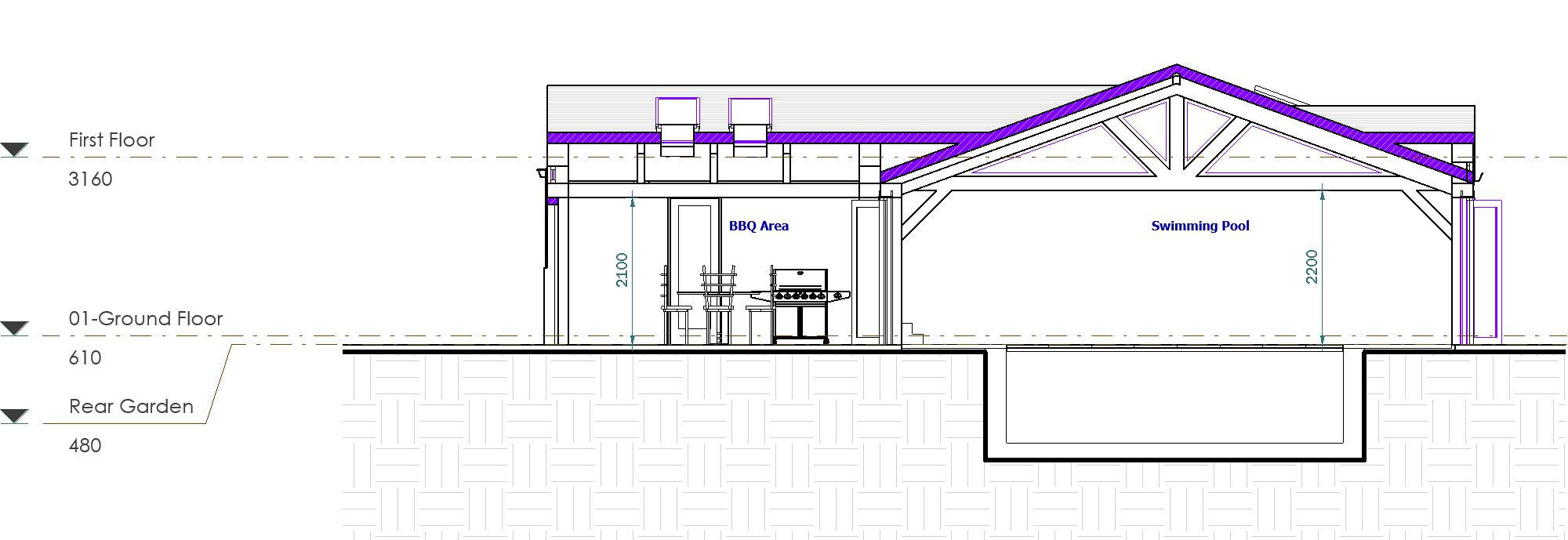

Proposed horizontal section

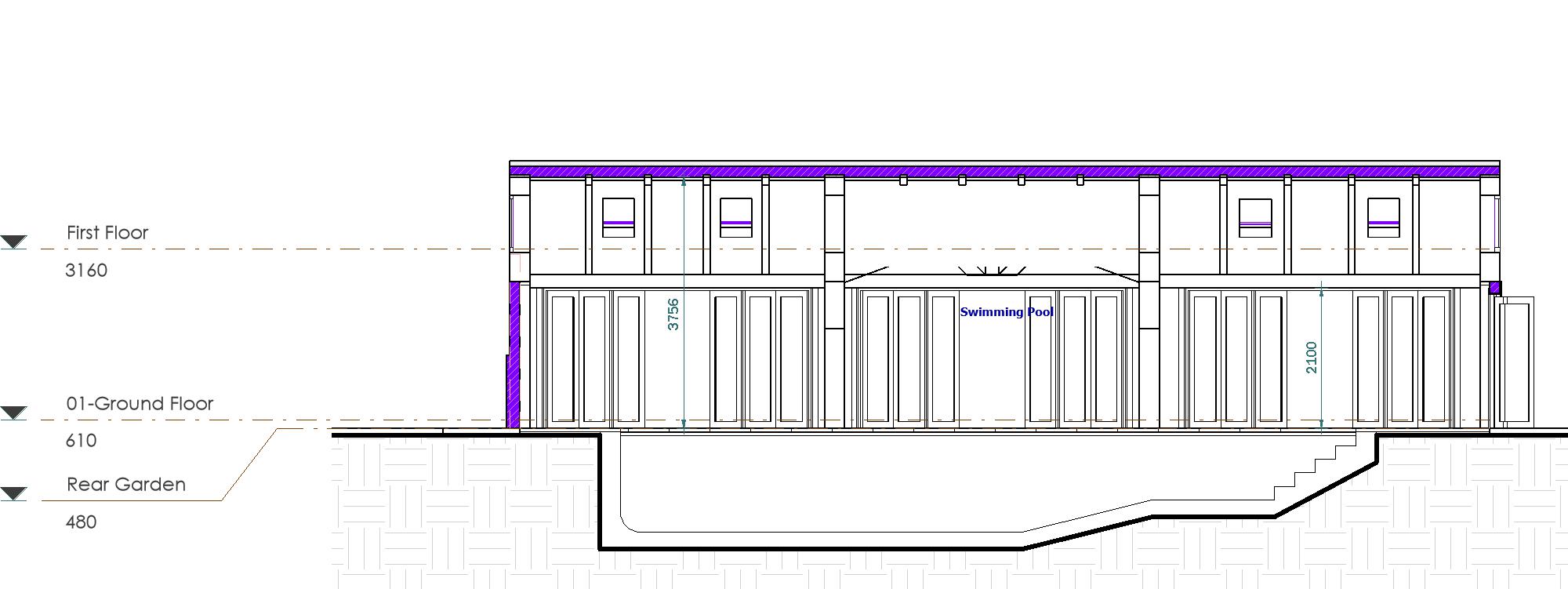

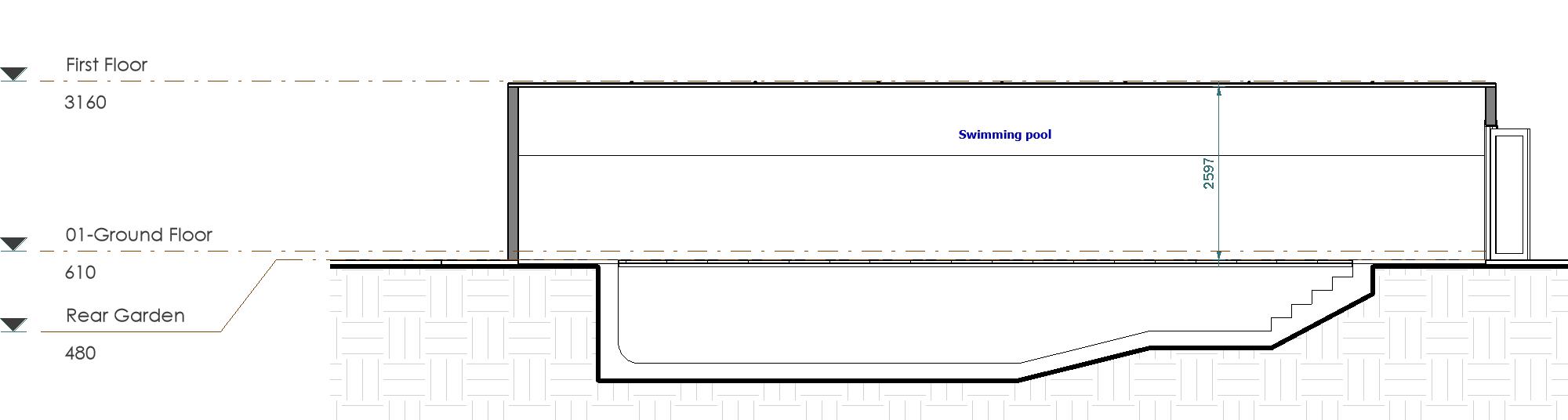

Proposed Vertical Section

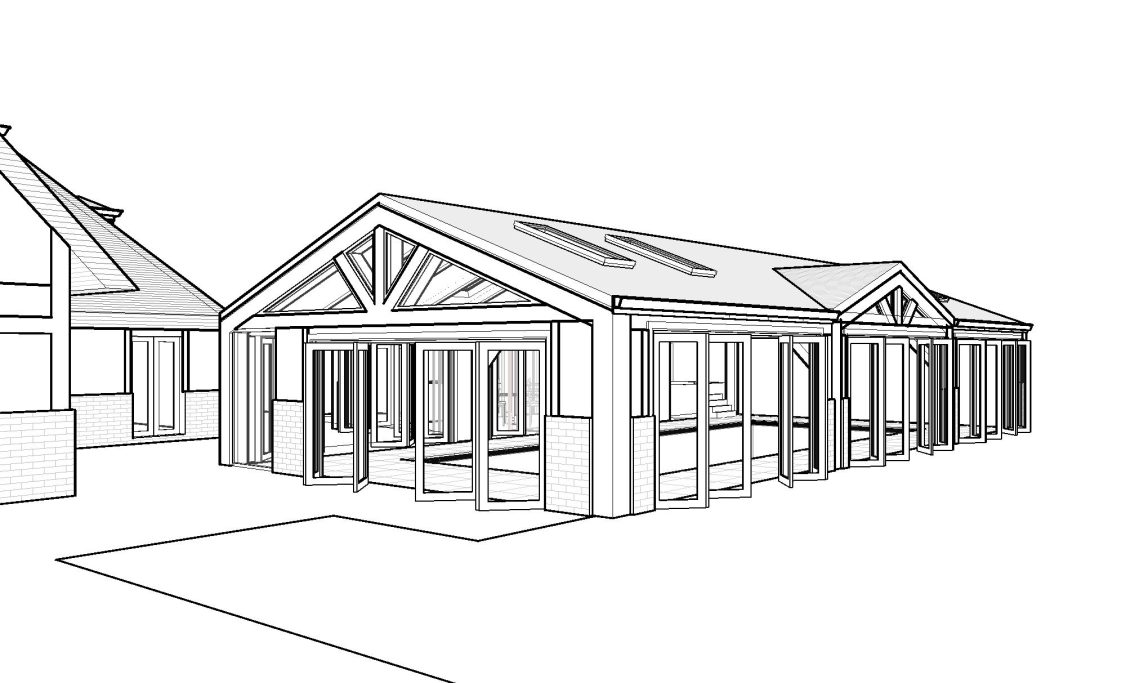

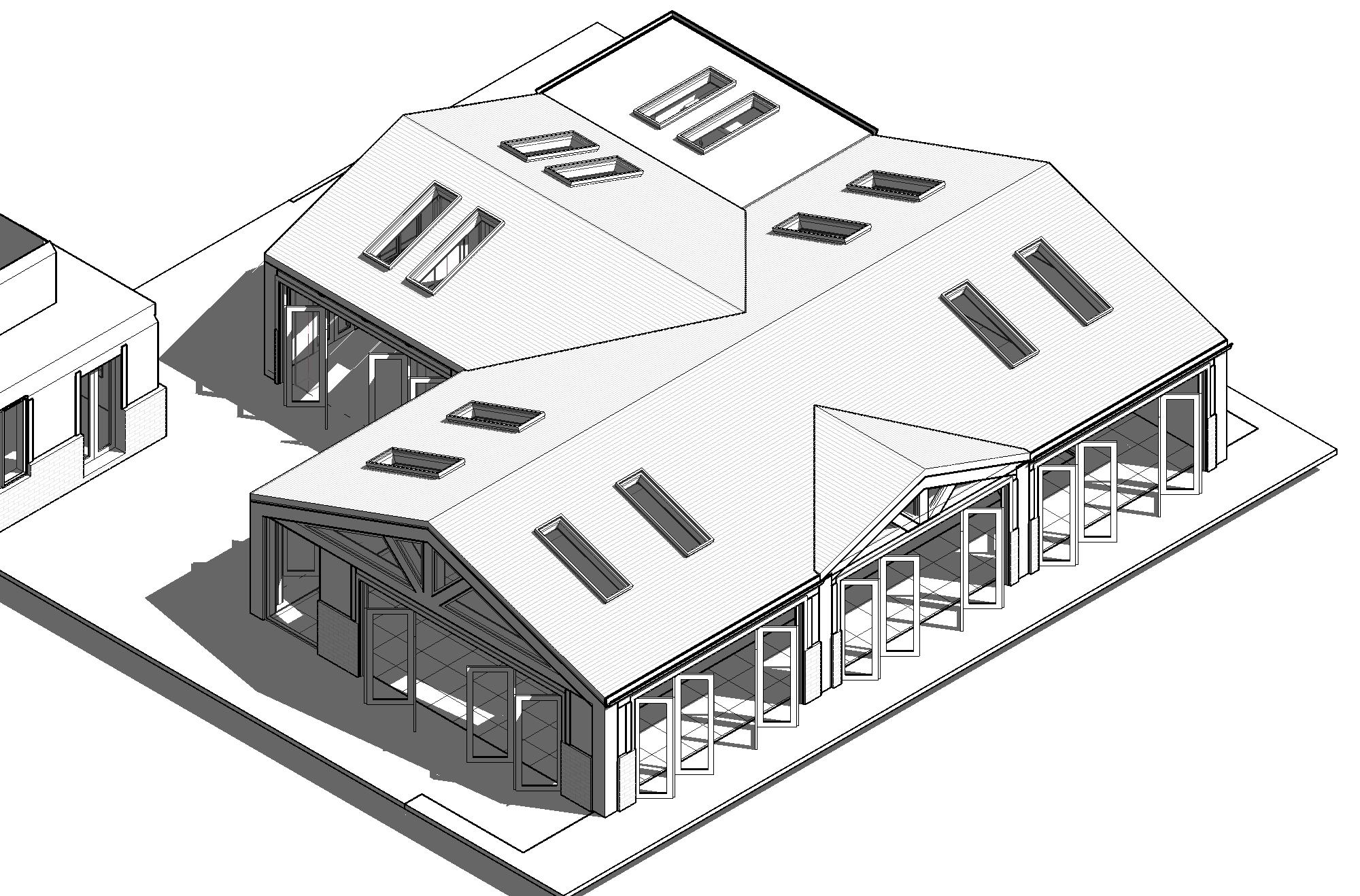

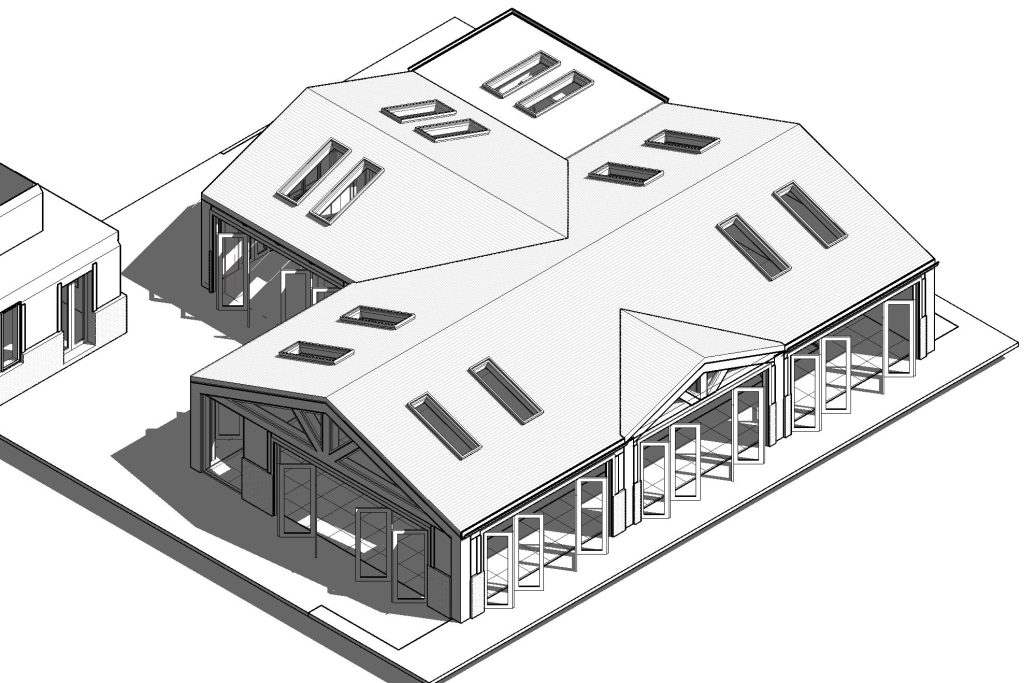

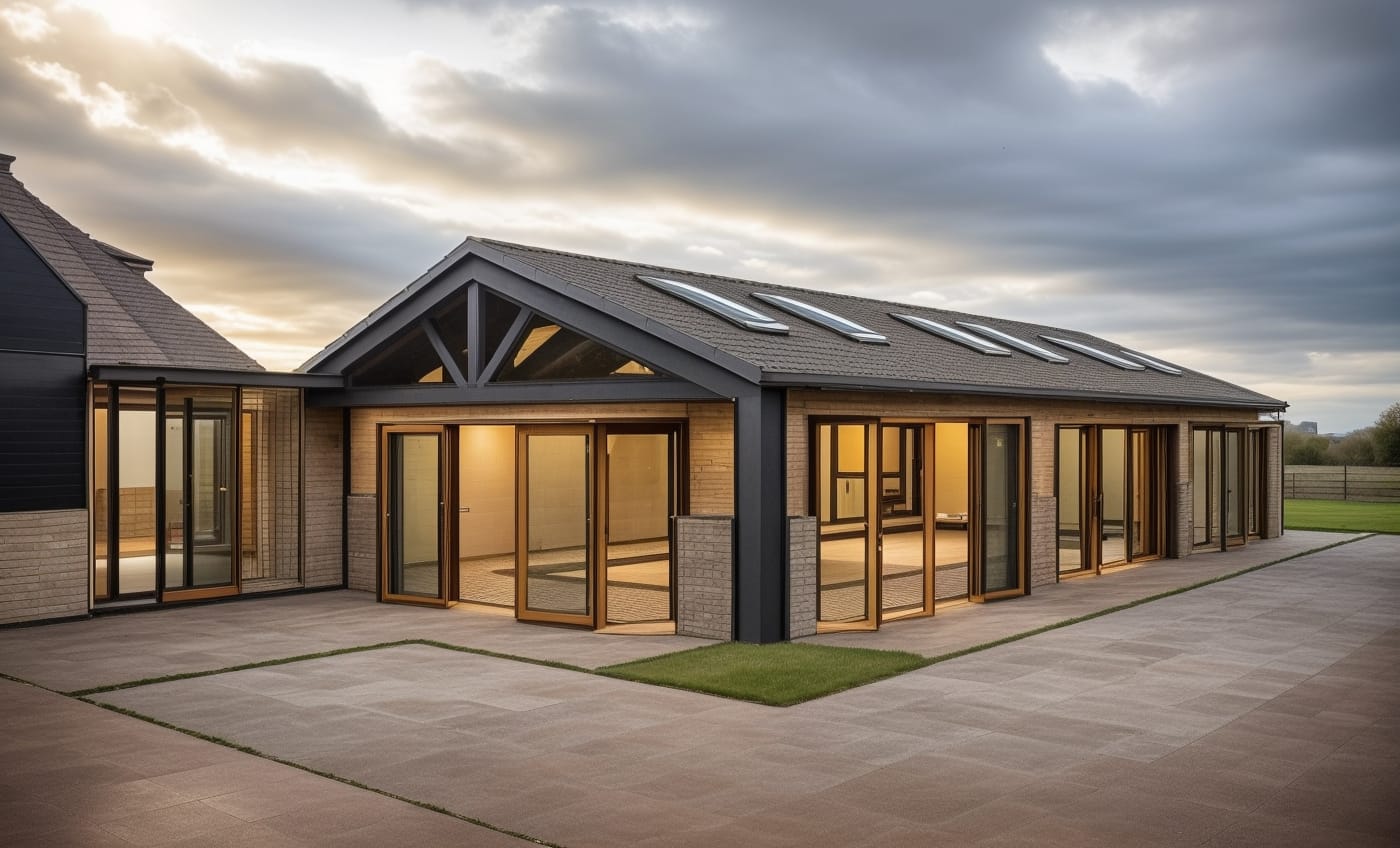

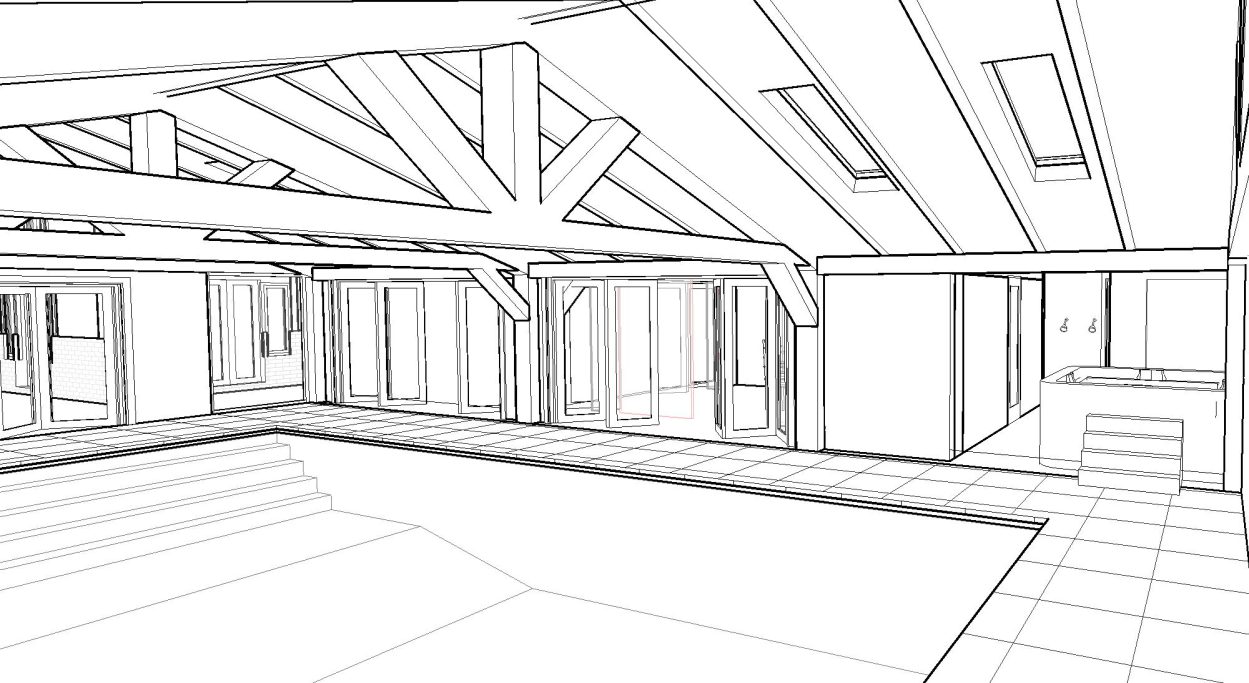

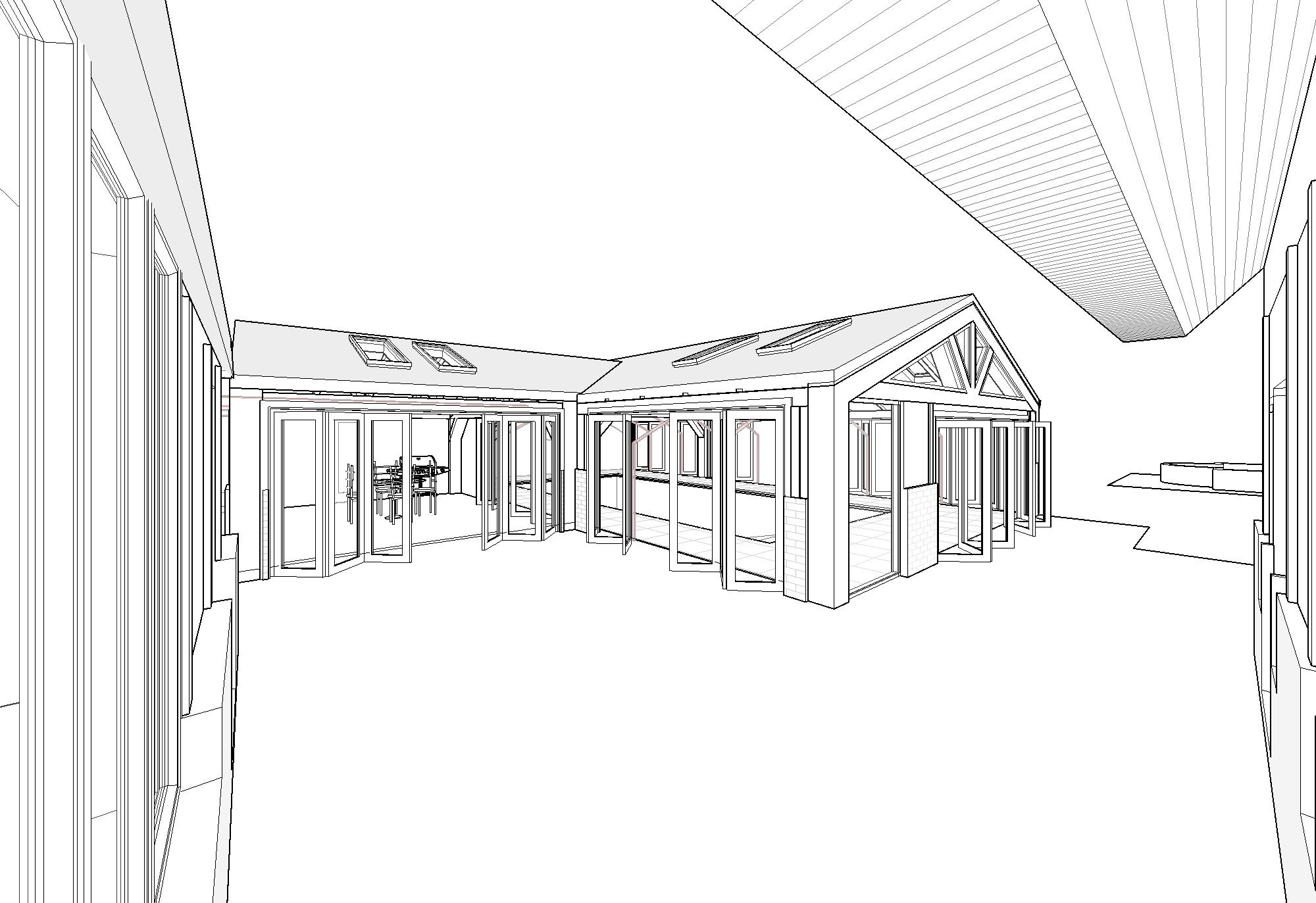

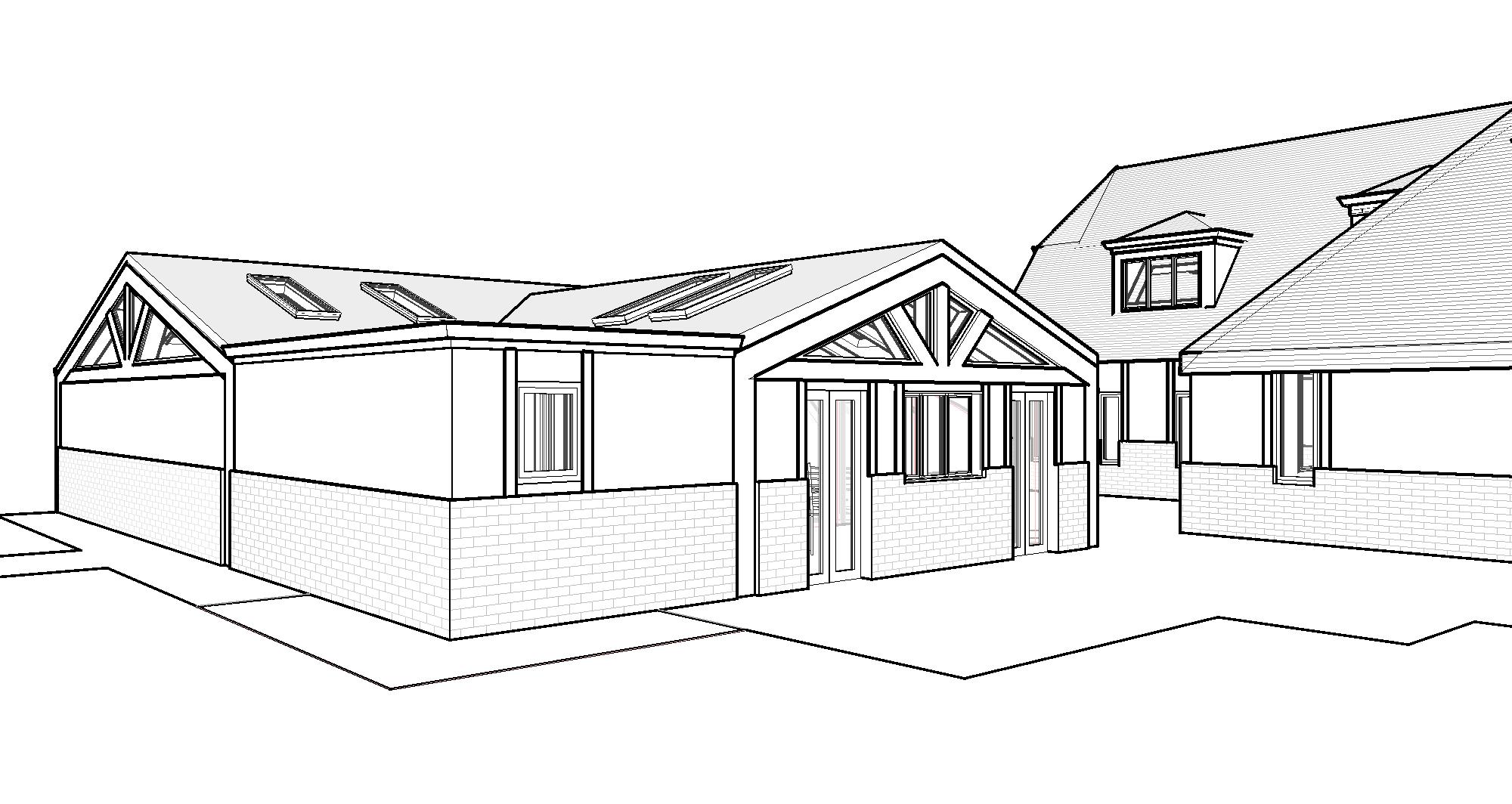

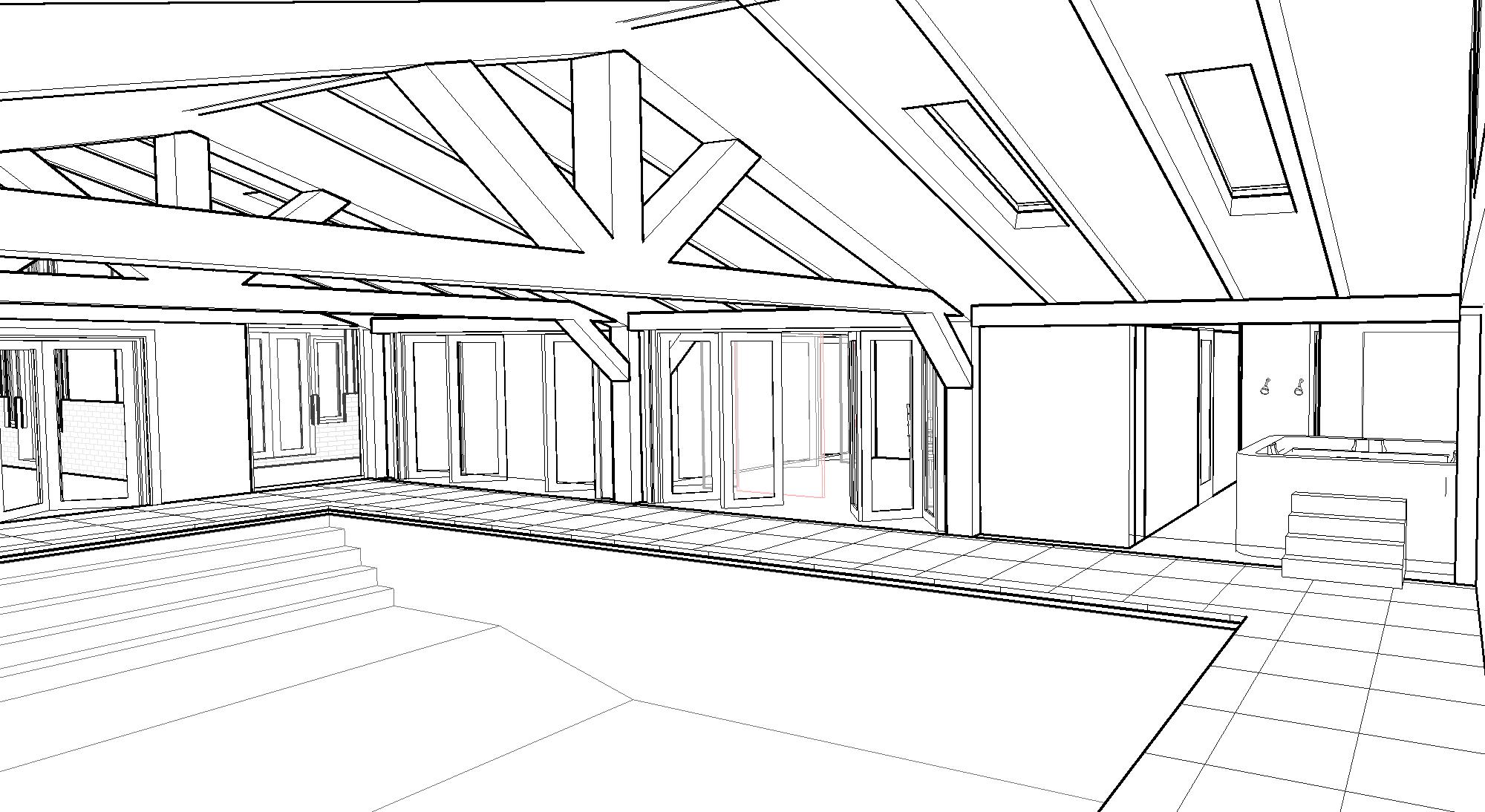

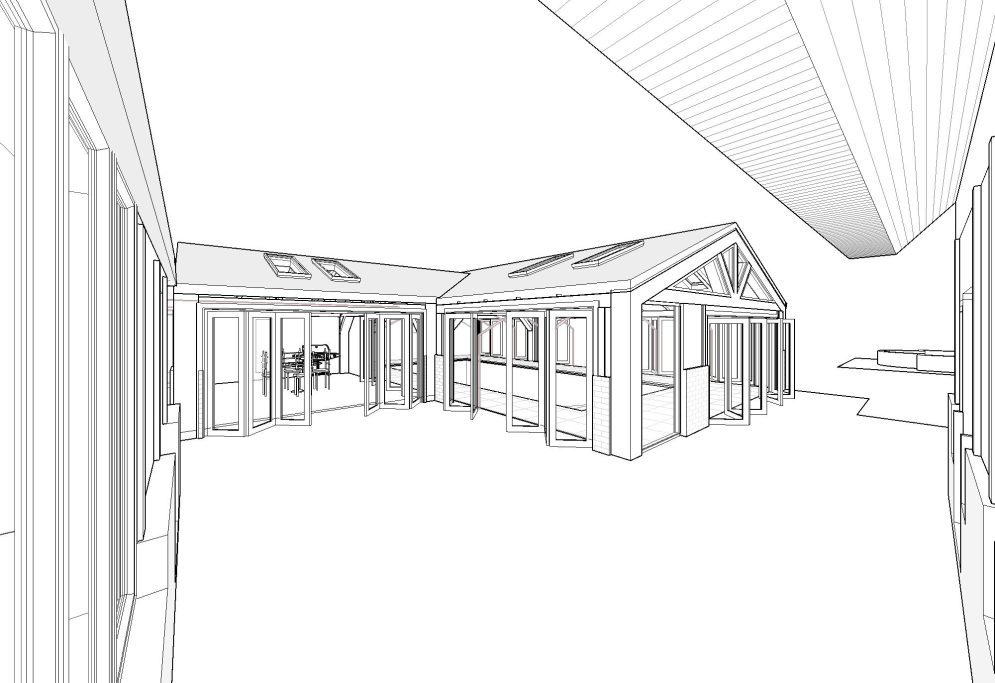

Proposed 3D view

Throughout the project, careful attention was given to the structural details, with comprehensive calculations and drawings to ensure the integrity of the foundations, beams, lintels, floors, and roof. In addition, detailed building regulation drawings were prepared, covering drainage, fire strategy, ventilation, windows, rooflights, and more, ensuring the home is both safe and efficient.
This home has been transformed into a light-filled, functional space that offers both comfort and practicality, making it the perfect place to live and entertain
